Compact Spin Coater 3 Vacuum Chucks & Vacuum Pump

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-VTC-100PA
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

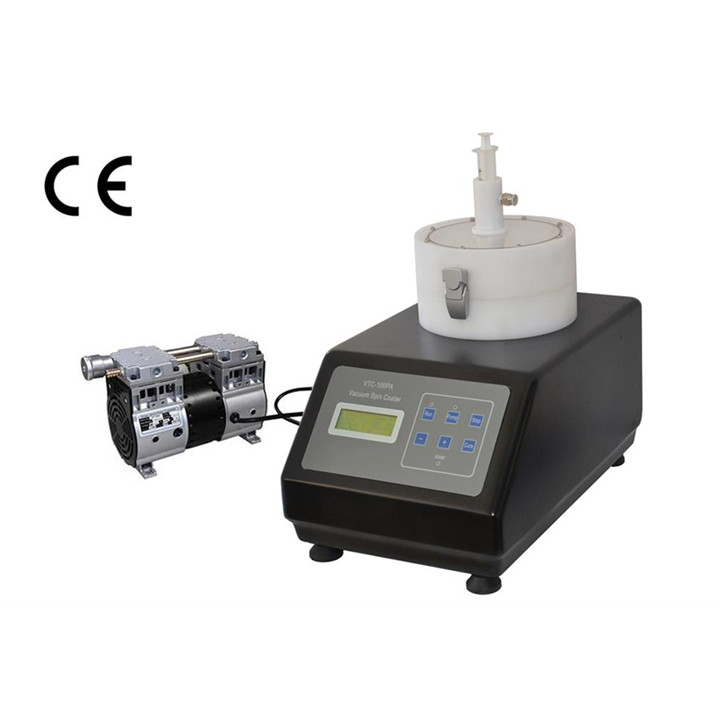

Hi-Speed Spin Coater (10K rpm & 5" max) with Vacuum Chucks


VTC-100PA is a tabletop spin coater up to 5" diameter at Max. 10000 rpm. The spin head actuator is a precision DC servo motor with accurate speed and acceleration control.

The substrate can be held by vacuum (for thinner objects). The device has a user-friendly keyboard and LCD display for programming various parameters up to 12 programs,

6 segments. Spin duration, spin speed, and acceleration can be programmed from the front panel. All components in the device are corrosion protected to make it cleanroom compatible.

This spin coaster can be used inside the glovebox with Ar gas.



Main Features

500 ~ 10000 RPM spinning speed programmable

Accept substrate from5 mm to 5"

PP chamber for anti-corrosive operation.

One gas inlet port on top of cover which can fill inert gas during coating

One 20ml Plastic Syringe is included

Safety interlock is integrated into the lid

Vacuum Chuck

Chamber size: 150 mm diameter

Vacuum Pump

One 120L/min Oilless Vacuum Pump is included in the standard package,

please click the picture below for specification details.

For Ar glove box user, Please consider our 24VDC vacuum pump to be used inside

a glovebox without feedthrough.

Vaccum grade rubber pipe is included for immediate use


Programmable Contro

Duration up to 60 seconds

Acceleration: 100 - 2000 rpm / sec adjustable

Accuracy:  < 5%

Digital control panel can store12 programs and each program has

segmentsprogrammable for  speeds, acceleration, and spin duration

Input Power

AC 220V

1000 W total for oilless pump and spin cater

24VDC high speed  motor


Gas Inlet

6mm diameter gas inlet port allows customers to fill desired gas into the chamber,

which can make coating under variable gas

flow environment

Liquid Injection

Standard Package:  20ml plastic syringe with needle

Option 1:  Precision Electronic Single Channel Pipette: 20 - 200uL

Option 2:  Heatable glass syringe with temp. controller, up to 200C

Product Dimensions


450mm Depth ×280mm W ×340mm H

Net Weight

20 kg
