Lab Lithium Battery Electrode Roll To Roll Roller Film Coater Coating Machine

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-TCH-TB20A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail


Lab Lithium Battery Electrode Roll To Roll Roller Film Coater Coating Machine


TMAXTCHTB20A Lab coating machine is a compact Roll to Roll continuous coater for

 battery electrode sheets with a small size for battery research labs.

 2. This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final

electrode winding (reeling in). It can coat electrode sheets up to 180mm in width and 500 meter in length automatically.

 3. This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery

cathode and anode electrode continuous coating.

 4. The Lab coating machine is with four Direction wheel in bottom, it can be removed

easily for laboratory  use.


Model

Lab coating machine TMAX-TCH-TB20A

Source voltage

AC 110v/220v, 50HZ/60HZ

Power

3000W

Warranty

One Year limited warranty with lifetime support

Coating mode

Continuous coating

Max coating width

180mm

Applicable matrix thickness

Aluminum foil : 11-30um

Copper foil : 8-30um

Mechanical tape speed

≤5m/min, with accuracy ±0.1m/min

Coating speed

0-750 mm / minute, adjustable

Coating thickness

30-200um

Applicable slurry viscosity

1500-15000cps

Coating roller accuracy

≤1um

Coating accuracy

Double dry thickness accuracy error : <±4um

Single side dry thickness accuracy error : <±2um

Double coated alignment error : <±0.5mm

Average length of error :  <±0.5mm

Roller inner diameter

3inches

Tension control

Low friction tension system

Struggle to control precision

<±0.3mm

Oven temperature

150°C adjustable, with accuracy ±1°C,

Independent PID adjustable

Weight

500kg

Dimension(L*W*H)

1200*800*900mm

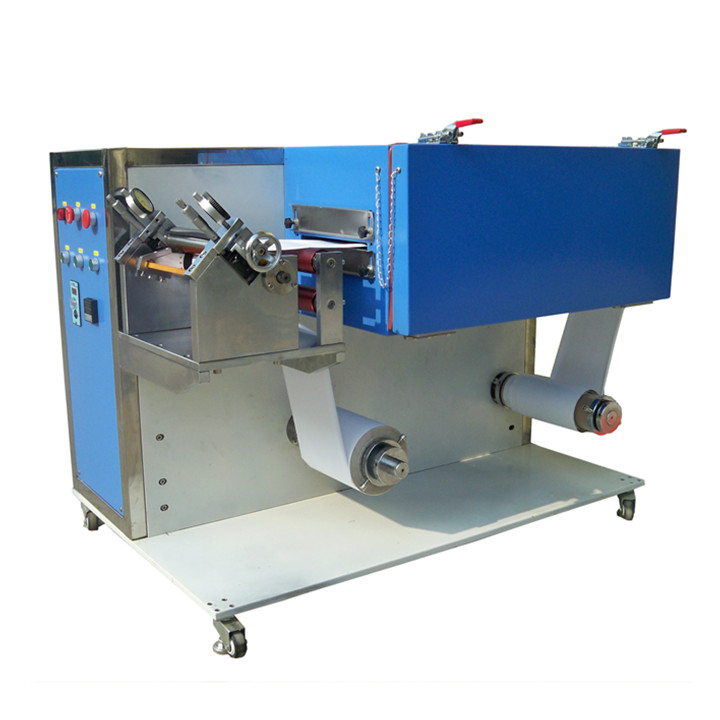

Roll To Roll Roller Film Coater Coating Machine
