Desktop Vacuumless Spin Coater (Max. 8000 rpm)

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-VTC-50A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

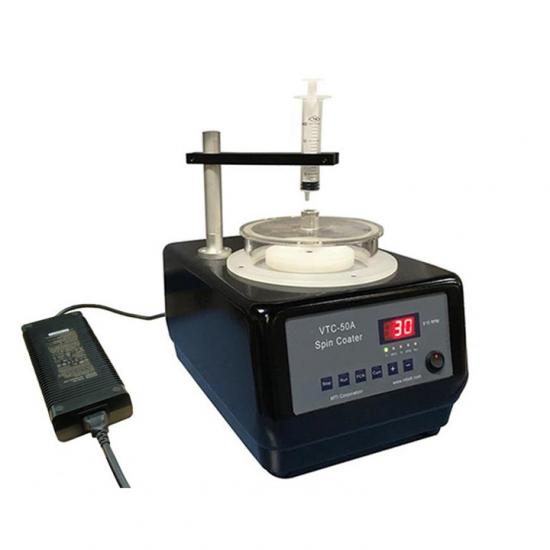

Desktop Vacuumless Spin Coater (Max. 8000 rpm)


Working Voltage

· 24 VDC

· A 110 - 240 VAC to 24 VDC(50/60Hz) NRTL Certified power adapter

for worldwide use is included.

Structure


· Heavy-duty Aluminum casting case to keep spinning stably

· 24VDC motor

· Ar gas compatible for use in a glove box

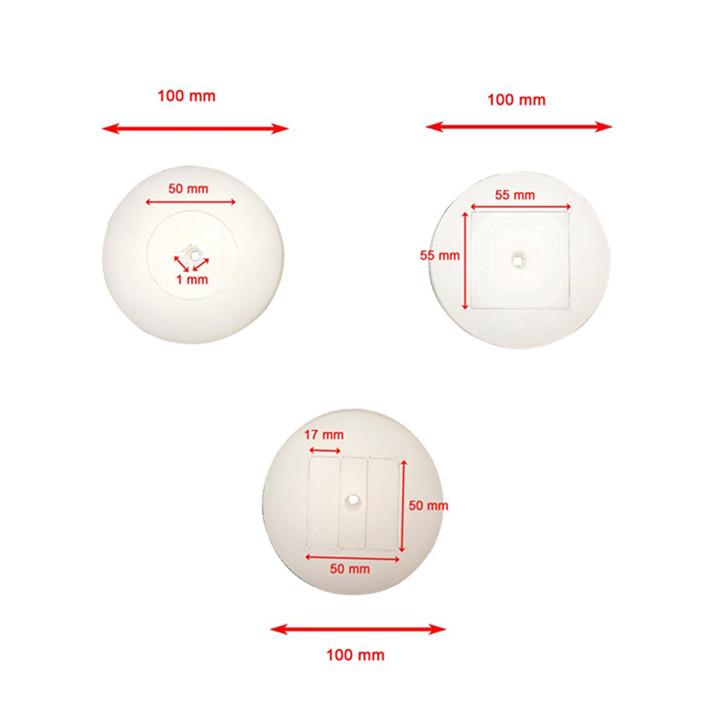

Spin Plates

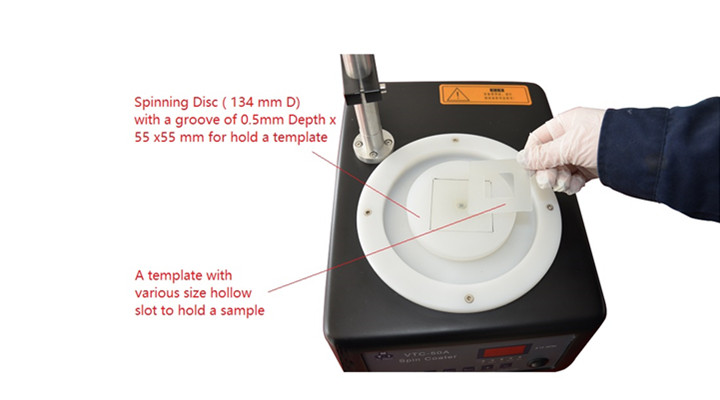

· The Chamber size is 134mm diameter, can accept wafer sample 4" diameter at Max.

· A 4" PTFE spin plate with the groove of 50x50mm is included, which can hlod 50 sq

  mm, 0.3 mm thin sample plate in place during fast-spinning, so-called vacuunless

  holder

· 7 pcs of 0.3 mm thickness nylon plate is included for holding irregular samples with

  double-sided tape or carving.

· One roll of 3M removable double-sided tape (3/4' W x 400" L) is included for

  immediate use

· Please click here to learn how to mount samples on the plate by using removable

  double-sided tape. It is easy and more economical than vacuum chuck.

· You may use a 50x50mm blank (included) plate to make different groove via a knife

  to fit your sample, or make an order space grooved plate from us.

 Spin Speed & Time

· Digital control panel with TWO programmable segments for different spin times and

  speeds

· Spinning speed: 500 - 8000 RPM

· Spinning Time: 1 - 60s

Liquid Injecting

· One 20 mL syringe is included for liquid injection

· Support rod and swing-arm for the injector is included for easy coating

· The syringe holder height can be adjusted and rotated freely

  along the support rod

Product Dimensions

13''(L) x 10''(W) x 7''(H)

Net Weight

30 lbs

Compliance

· CE certificated only

Warranty

· One year limited with lifetime support

· Rusting and damage due to improper storage condition or maintenance are not

  covered by warranty

Application Notes

· In order to achieve optimal coating quality, please consider cleaning subatates by a

  plasma cleaner (click picture below for more details) prior to coating.

  This will significantly reduce the surface tension on the substrates.

· You may place the compact spin coater into a glove box to operate in inert gas

· Cleaning instruction for the spin coaters.

Warnings

· Do not overflush the water bowl/base with any kind of liquid. Excess  ilquid will leak

  into the motor shaft and cause damage.

  Please use fabric cloth to wipe out the residues remain in the bow/base.

· If necessary, turn on the water outlet when flushing the water bowl/base to avoid

 liquid overflowing during the operation.

Shipping Dimensions

20"(L) x 15"(W) x 20"(H)

Shipping Weight

60 lbs
