Lithium Battery Lab Pilot Machine Line

/

Cylindrical Cell Lab Equipment

/Cylinder Cell Battery Electrolyte Injection machine With Filling Pump System and Electronic Control Box

Cylinder Cell Battery Electrolyte Injection machine With Filling Pump System and Electronic Control Box

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-JLB-10
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Cylinder Cell Battery Electrolyte Injection machine With Filling Pump System and Electronic Control Box

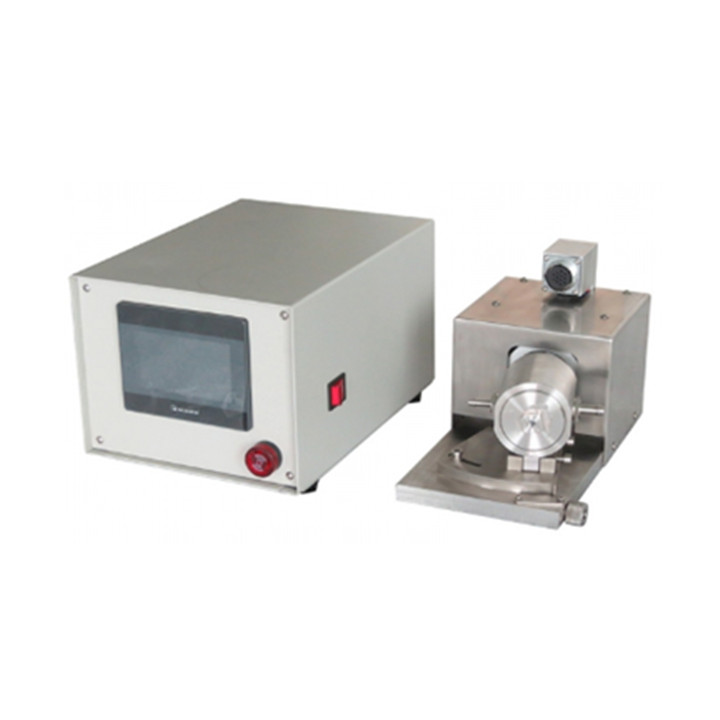

TMAX-JLB-10 Electrolyte Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system


Model

Electrolyte Filling Pump System  TMAX-JLB-10

Warranty

Two years limited and lifetime support

Type

Rotating reciprocating positive displacement special ceramic injection pump

Speed

1-800 rpm, According to system configuration and fluid characteristics

For battery industry, 60-200rpm is best

Stroke number

1-9999times, According to system configuration and fluid characteristics

Filling range

0-2.4ml adjustable

Filling accuracy

Within 3‰

Source voltage

AC110-240V, 50/60HZ Single phase

Power

200W

Dimension (L*W*H)

Controller box : 340*300*145mm

Filling device : 250*200*160mm


Electrolyte Filling


Cylindrical Cell Preparation
