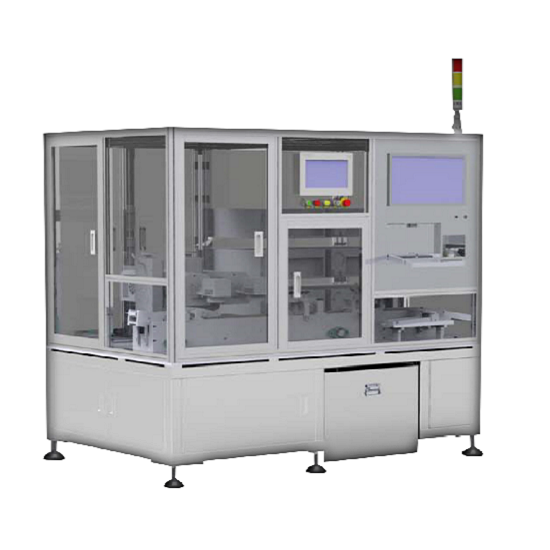

Cylindrical Battery Stripping Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-BJXC-LPE01
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

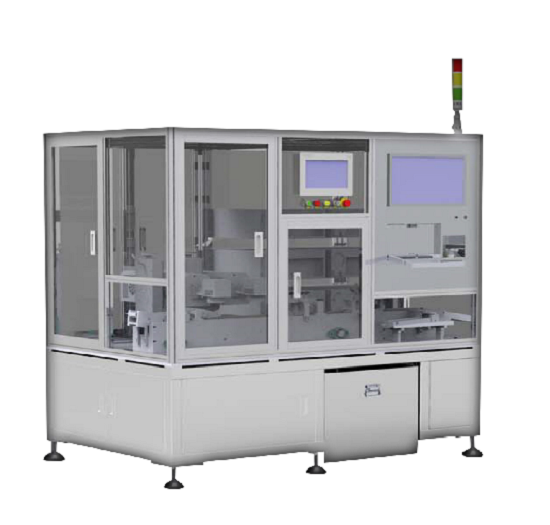

Cylindrical Battery Stripping Machine

Products Description

This battery peeling equipment is used for 18650,21700 cylinder battery peeling, the equipment uses laser cutting peeling, cutting high efficiency and will not cause damage to the battery surface, after peeling automatic detection and spray code, NG automatic removal and collection, skinning waste collection function. Can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automated production line.

Performance Characteristics

1. High-speed laser cutting, high efficiency, no damage to the surface of the battery;

2. CCD detection of peeling results and automatic removal of NG products;

3. Skinning waste collection function to ensure that the equipment is clean and tidy;

4. Automatic coating on the surface of battery steel case.

Technical Parameter

Model Number	TMAX-BJXC-LPE01	Beat	60PPM
Voltage Source	380V 50HZ	Batteries	18650/21700/22650 ect.
Power	1.5KW	Pressure	0.5-0.7MPA
Laser	Cutting 30-50W	Dimensions	190012001900(mm)
