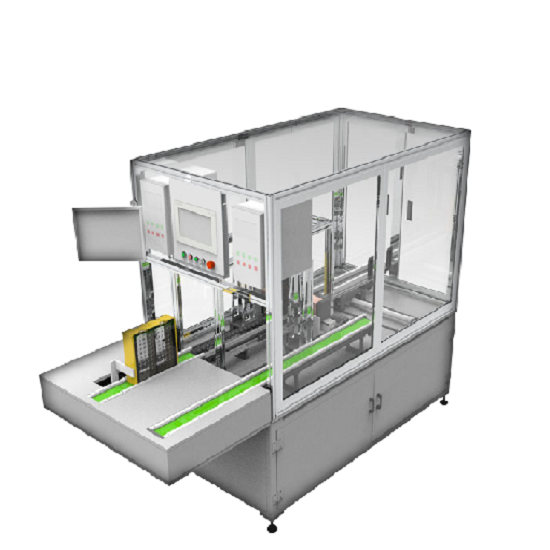

Double Side Resistance Welding Equipment for Cylindrical Cell Modules

Products Description

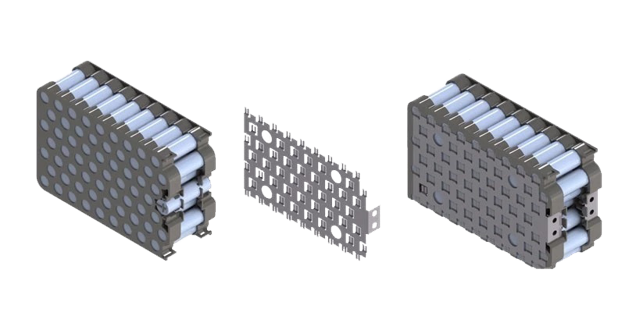

The resistance welding equipment for 18650, 21700, 26650 and other cylindrical cell modules and aluminum nickel composite sheet resistance welding, double-sided positive and negative electrodes at the same time spot welding, 1.2 seconds can complete a welding, can form positive and negative 8 solder joints, high efficiency, good quality, through the servo module high-speed movement, loading and unloading switching, can be connected with the conveyor line to the front and back.

Performance Characteristics

1. It can realize convex spot welding, pointer welding and eccentric electrode welding;

2. With high precision, it can realize the simultaneous welding of positive and negative electrodes of the cell;

3. The average beat is 1.2s/pcs and the work efficiency is high;

4. It can realize 4-point welding at the same time, and can travel 8 positive and negative nuggets at one time;

5. Real time monitoring of welding to ensure welding quality.

Technical Parameter

Model Number	TMAX-PEW12-D-01	Beat	1.2s/pcs
Voltage Source	220V 50HZ	Batteries	18650/21700/22650 ect.
Power	1.5KW	Table Height	850mm
Pressure	6kgf/cm²	Dimensions	260011002000(mm)
