High Accuracy Threaded Cylindrical Supercapacitor Grooving And Pre-Sealing Machine

Application

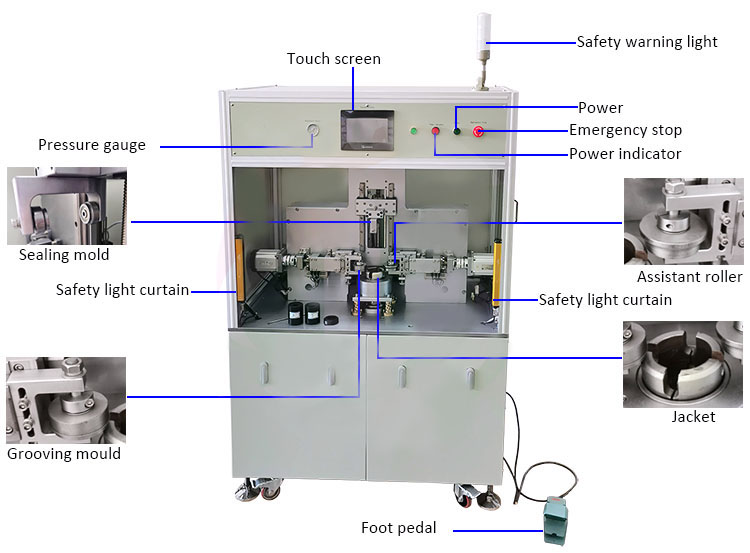

The Supercapacitor Grooving Pre-Sealing Machine is an advanced automated system designed for precision grooving and pre-sealing (curl edging) of cylindrical batteries and supercapacitors.

Main Features

Servo-Driven Precision Control

Utilizes servo screw technology for grooving and sealing processes, ensuring high-precision adjustment and repeatable accuracy.

Jacket-Style Clamping System

Features an innovative jacket clamping mechanism that provides optimal centering and concentricity, resulting in uniform groove formation.

High-Precision Linear Motion System

Equipped with precision linear guide rails to support tooling, ensuring dimensional stability and long-term accuracy.

Integrated Safety & Aesthetics

Incorporates a safety light curtain system with a streamlined exterior design, balancing operational security with visual appeal.

Intuitive Automation Interface

Controlled by a PLC system with touchscreen HMI, enabling programmable workflows and real-time parameter adjustments.

Compact Geometric Design

Showcases a refined geometric structure that minimizes footprint while maximizing functionality and aesthetic value.

Technical Specifications

Parameter	Specification
Applicable Products	Cylindrical batteries, supercapacitors (customizable)
Air Supply	0.5–0.7 MPa (adjustable)
Power Supply	220V / 50Hz
Power Consumption	1500W
Dimensions	L 1000 mm × W 800 mm × H 1600 mm
Weight	800 kg
