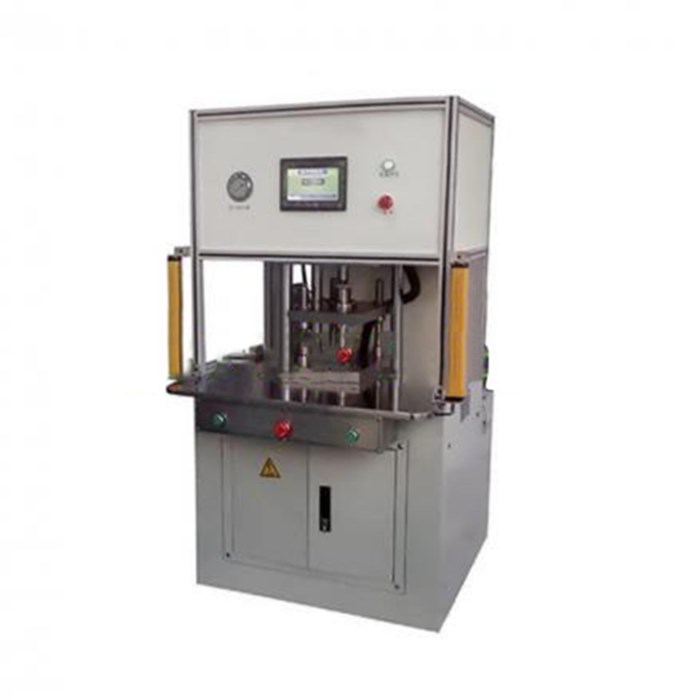

Supercapacitor and Lithium-ion Power Battery Pole Ear Riveting Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-MJ-1642
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Supercapacitor and Lithium-ion Power Battery Pole Ear Riveting Machine




Functional overview

Suitable for the riveting of supercapacitor and lithium-ion power battery' s pole ear and leading-out terminal.


Functional characteristics

1.Adopt hydraulic system as the punching power, with big force and stable speed.

2.The device adopts PLC control system to ensure stable and reliable system operation, and simple operation.

3.Riveting punch adopts high-strength and high-wear-resisting alloy die steel, with good wear resistance.

4.Equipped with safety light grid and protective door, with safe and reliable operation.


Technical parameters

The maximum slider stroke

100mm

The maximum riveting pressure

16t

Pressure holding time

0~10s(can be set)

Power source

AC380/50Hz  Power:6KW

Overall dimensions(LxwxH)

660x1100x1500mm

Weight

420kg
