Lab Semi-Automatic Slitting Machine for Cylindrical and Prismatic Battery Electrode Cutting

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-DYG-110A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

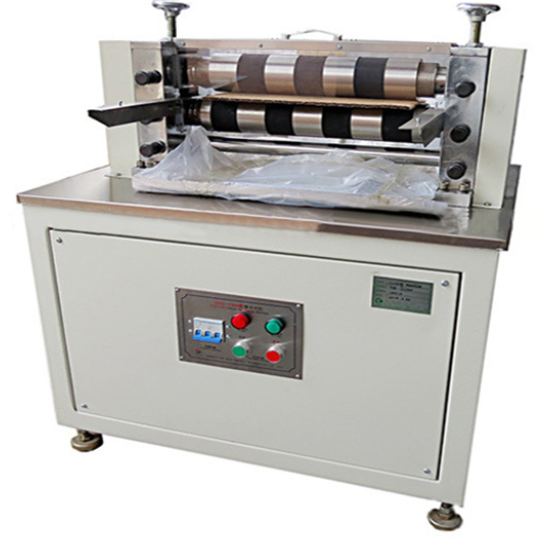

Lab Semi-Automatic Slitting Machine for Cylindrical and Prismatic Battery Electrode Cutting




1 TMAX-DYG-110A model Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.

2 The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade.

3 This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.

SPECIFICATIONS:

Model

Battery Electrode Slitting Machine      TMAX-DYG-110A

Source voltage

AC 110V-220V, Customized, 50HZ

Power

800W

Warranty

One year limited warranty and lifetime support

Slitting mode

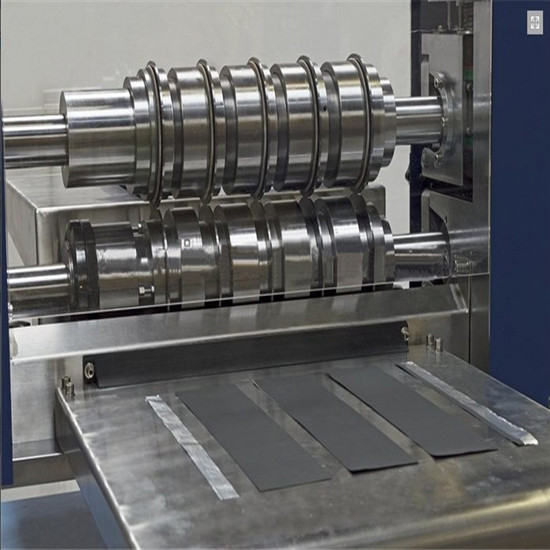

Single knife hobbing

Knife type

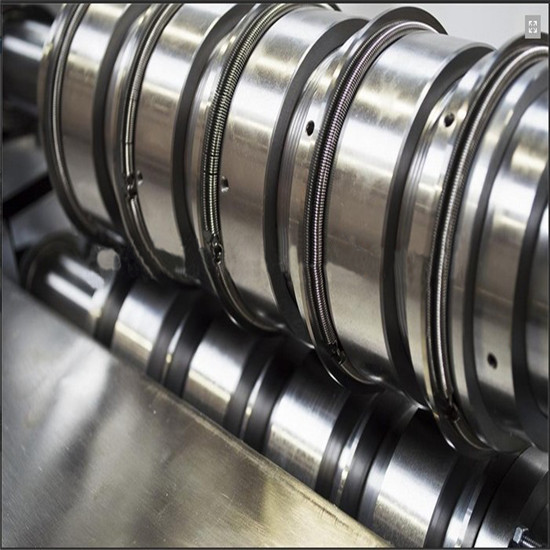

Upper and lower round knife

Slitting width

20-500mm

Slitting thickness

100-300um

Hob diameter

 Φ80 mm

Slitting speed

10m/min, Adjustable
