Supercapacitor Assembly Machine Line

/Supercapacitor ​Rotary Pressure Sealing Machine

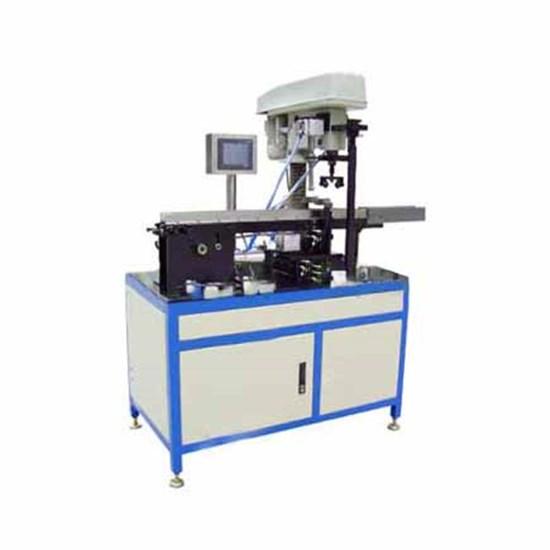

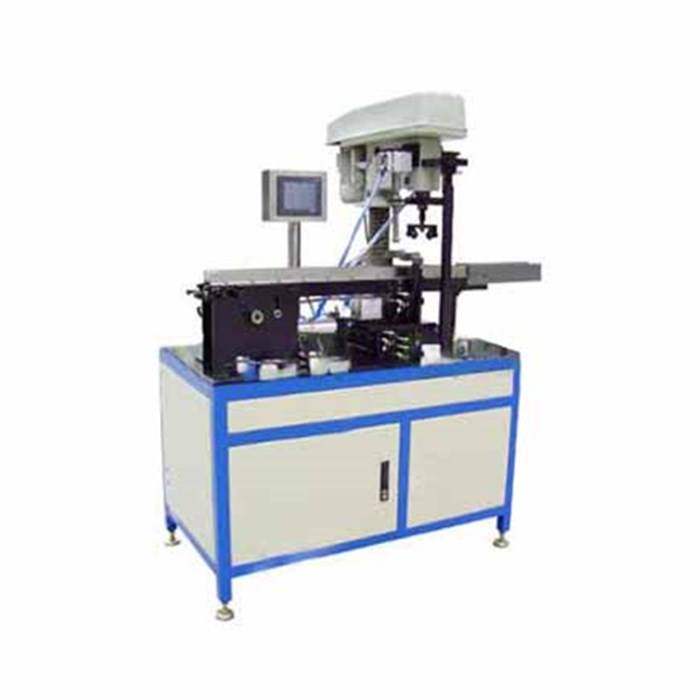

Supercapacitor ​Rotary Pressure Sealing Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-RSS
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

supercapacitor Rotary Pressure Sealing Machine



Functional overview

The machine is suitable for cylindrical battery, supercapacitor seal. The machine uses a touch screen, PLC communication control,through the implementation of pneumatic components feeding, the more bits, the seal, the material discharing etc.

Available sizes according to customer.


Technical parameters

For case diameter

φ20 to 120mm(customer specified)

For case height

50 ~ 250mm (customer specified)

Production capacity

 about 10 pcs/ min

Gas source

 0.4 ~ 0.7MPa

Operating voltage

Three-phase 380V / 50HZ

Total power

2KW

Dimensions (L * W * H)

1300 * 550 * 1350mm
