Laboratory 1200C to 1800C High Temperature Split Tube Furnace for Material Processing

Wechat:17720812054

Skype and Whatsapp:+8617720812054

Email:Beata@batterymaking.com


  • Item NO.:

    TMAX-50mmfurnace
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    In stock
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

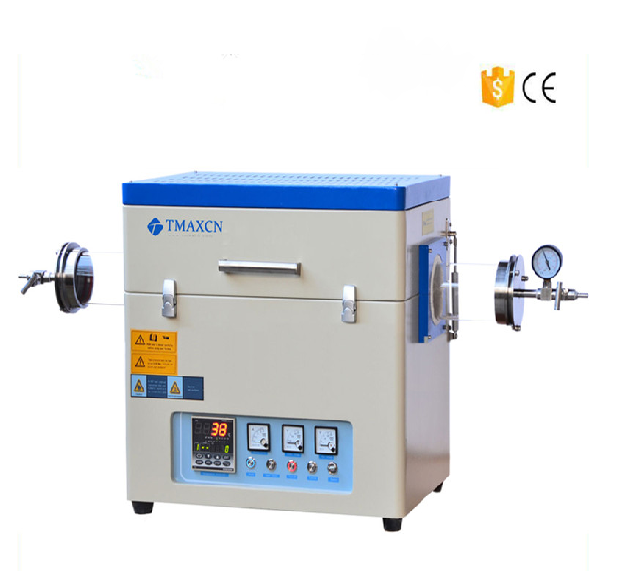

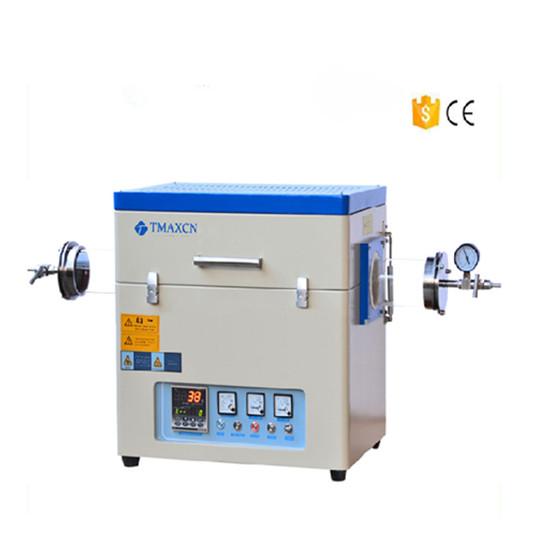

Laboratory 1200C to 1800C High Temperature Split Tube Furnace for Material Processing

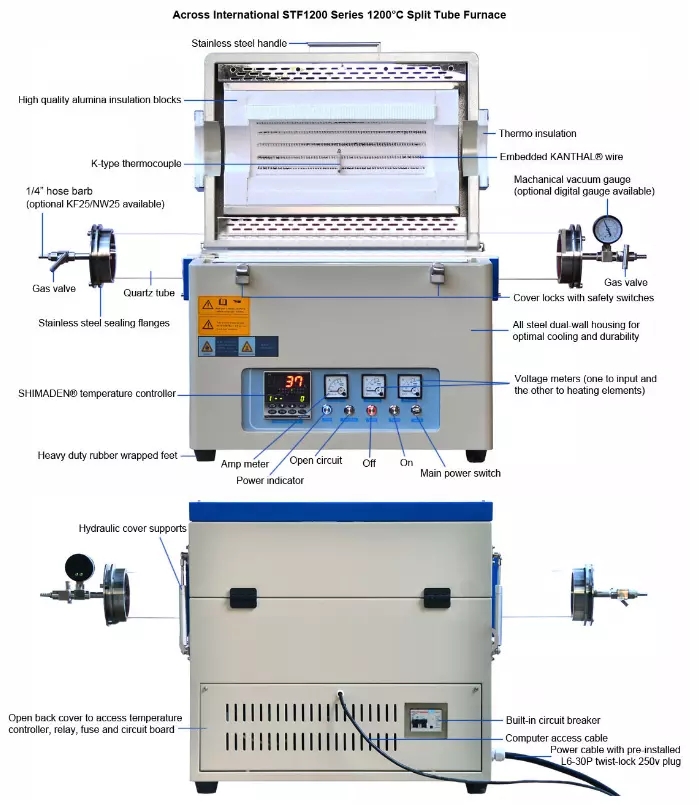

TMAX-50mmfurnace portable split tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.


Tube size

 50mm OD x 700mm length
 It can be customized

 Maximum working temperature

 1200°C

 Constant working temperature

 1100°C

 Minimum working temperature

 Ambient

 Constant working temperature under vacuum

 1000°C

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Heating element type

 Resistance coil wire

 Thermo couple type

 K

 Refractory lining

 Mitsubishi (Japan) 1500 grade fiber alumina

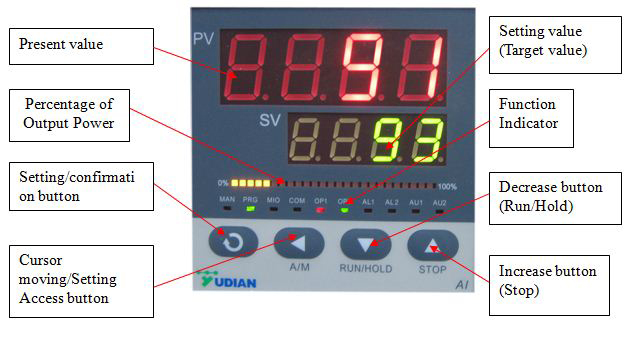

 Temperature controller

 Single PID, 30 segments

 Maximum heating & cooling rate

 < 30°C / min

 Heating zone length

 8"

 Constant temperature zone length

 3"

 Temperature controller precision

 +/- 1°C

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one vacuum gauge,
two valves and four thermal ceramic blocks.

 Electrical requirements

 110VAC,  50/60 Hz single phase, 1500 watts

 Gas inlet/outlet

 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)

 Unit dimensions

 27 x 13 x 16" (WxDxH)

 Unit weight

 55 Lb



Tube Furnace

Tube Furnace
