Nano Cold Magnetron Sputtering Coater For Decorative and Functional Thin Film Deposition

Nano Cold Magnetron Sputtering Coater For Decorative and Functional Thin Film Deposition

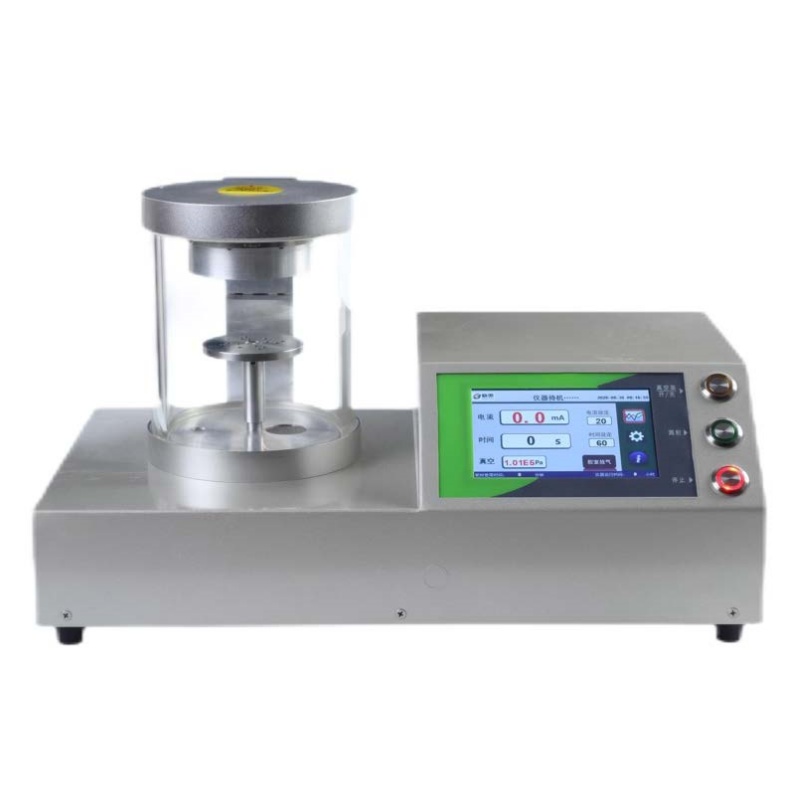

TMAX-ZK-JS01-Cold Magnetron Sputtering Coater

Product Highlights

· Uniform & Ultra-Fine Coating: Produces highly reflective/translucent decorative films with 6–10nm particle size, ideal for aesthetic applications.

· Cold Sputtering Technology: No surface temperature rise, ensuring integrity of heat-sensitive samples.

· High Efficiency & Precision: Wide sputtering current range (5–45mA) with 600V voltage and up to 450W power for dense, adherent films.

· Automated Operation: Features LCD control, auto-vacuum cycling (<90s pump-down), and gas release for streamlined workflows.

Key Applications

· Decorative Films: Full-reflective/semi-transparent coatings.

· Electrode Fabrication: Battery membranes, conductive layers.

· Electron Microscopy: FE-SEM sample preparation.

· Delicate Materials: Temperature-sensitive substrates (biological specimens, polymers, filters).

---

Technical Specifications

Category	Parameters
Operation Mode	Fully automated magnetron sputtering
Sputtering Current	2–50mA (adjustable)
Voltage	600V (adjustable)
Target Materials	Standard: Au/Pt (choose one); Optional: Ag, Cu, Al, Ti, Cr, Pb
Vacuum System	Oil-sealed rotary pump (1L/s) or optional dry scroll pump (<0.1Pa ultimate)
Chamber Size	Ø128×130mm
Sample Holders	1×Ø90mm, 4×Ø25mm, 6×Ø15mm
Gas Supply	Air/argon, auto-admitted via Φ4 quick-connect
Particle Size	6–10nm
Power Supply	220V/50Hz (110V customizable), 450W max
Protections	Over-current (>50mA cutoff), vacuum (>100Pa cutoff)

Unique Advantages

· Versatile Target Compatibility: Supports diverse metals for tailored film properties.

· Zero Thermal Damage: Critical for polymers, biomaterials, and battery components.

· Industrial-Grade Adhesion: Strong film bonding for durable decorative/functional layers.

Ideal for

· R&D Labs: Precision coating for SEM, thin-film studies.

· Manufacturers: Decorative films, electrodes, and sensors.

· Bio/Nano Tech: Delicate sample preparation with nanoscale control.
