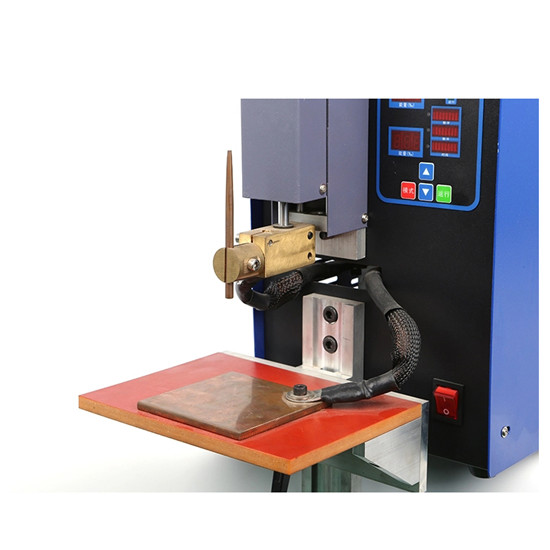

Single Welding Needle DC Spot Welding Machine for Electric Scooters Battery Pack

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-W728
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Single Welding Needle DC Spot Welding Machine for Electric Scooters Battery Pack




FEATURE

1 TMAX-W728 DC spot welding machine has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Foot spot welding machine without air supply but need with desk shipping together.

2 . This DC double needle spot welding machine is specifically designed for professional Li-ion Battery Research. It is mainly used for Welding pcb for mobile phone battery pack and EV battery pack for battery and Nickle tab weld.


SPECIFICATIONS

Model

DC spot welding machine  TMAX-W728

Power Supply

110V-240V with transformer, Single Phase 50/60Hz

Max output power

10KVA

Warranty

One year limited with lifetime support

Advantages

1 Double pulse welding - pre welding and welding

 2 Microcomputer control precision, Guarantee the evenness of each welding effect

 3 Automatic count

Pre-welding current

0-99A

Welding time

0-30S

Welding current

0-99A

Welding stroke

25mm, the welding height can be adjusted

Operating

Foot switch and pneumatic model can be chosen

Control

The microcomputer chip control, LCD liquid crystal display, simple and precision

Welding thickness

0.03-0.5 mm Ni weld on Ni or metals

Weight

50kg

Dimension(L*W*H)

Foot switch model with desk : 800*580*1100mm

Pneumatic model : 400*370*220mm
