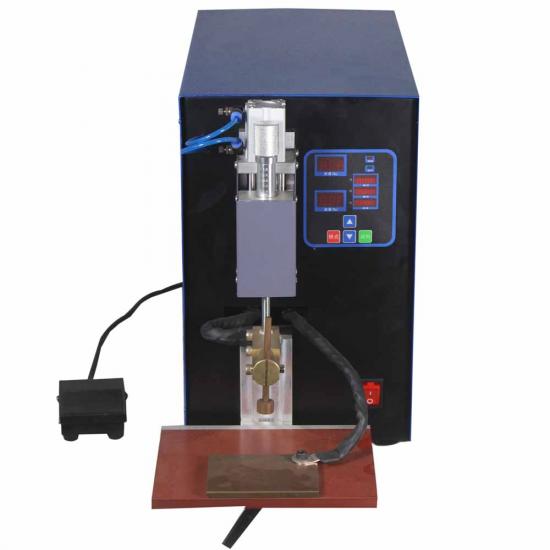

Single Welding Needle Manual Battery Pack Welding Machine

FEATURE

1 . TMAX-W728 DC spot welding machine has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Foot spot welding machine without air supply but need with desk shipping together.

2 . This DC double needle spot welding machine is specifically designed for professional Li-ion Battery Research. It is mainly used for Welding pcb for mobile phone battery pack and EV battery pack for battery and Nickle tab weld.

SPECIFICATIONS

Model	DC spot welding machine  TMAX-W728
Power Supply	110V-240V with transformer, Single Phase 50/60Hz
Max output power	10KVA
Warranty	One year limited with lifetime support
Advantages	1 Double pulse welding - pre welding and welding  2 Microcomputer control precision, Guarantee the evenness of each welding effect  3 Automatic count
Pre-welding current	0-99A
Welding time	0-30S
Welding current	0-99A
Welding stroke	25mm, the welding height can be adjusted
Operating	Foot switch and pneumatic model can be chosen
Control	The microcomputer chip control, LCD liquid crystal display, simple and precision
Welding thickness	0.03-0.5 mm Ni weld on Ni or metals
Weight	50kg
Dimension(L*W*H)	Foot switch model with desk : 800*580*1100mm Pneumatic model : 400*370*220mm
