Supercapacitor Automatic Roll-To-Sheet Cutting Machine

Wechat:13174506016

Skype and Whatsapp:+86 13174506016

Email:irene@batterymaking.com


  • Item NO.:

    TMAX-ZHQ300
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

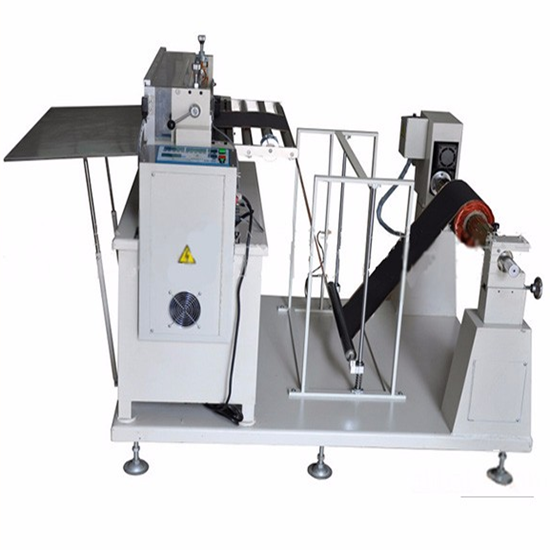

Supercapacitor Automatic Roll-To-Sheet Cutting Machine



TMAX Limited manufactures the TMAX-ZHQ300, a new automatic Roll-to-Sheet Cutting Machine which can quickly and accurately transform a roll into the sheets with desired length.



Outstanding Features:
1. PLC Control is fully programmable and adaptable to the needs of each job.

2. Automatic operation eleminates the risks of accident in cutting operation.

3. Unreeling auto-tension control.

4. Stainless steel made transfer & tension rods help minimize the chloridion which may cause negtive effects to the electrode quality.

5. Continuous cutting with two selectable cutting modes: "Cut-to-length" and "Color Mark Detection Cutting".

6. Compensation adjustment at the cutting edge.

7. Set dsired number of cuts.

SPECIFICATIONS:

Working Voltage

Single-phase 208~240VAC, 50/60Hz

Max. Power Consumption

1.2KW

Cutting Modes

1. Cut-to-Length: Set the desire cutting length with in the range of 1~9999mm

2. Color Mark Detection Cutting: Allows a printed color mark on a continuous web to be detected and therefore for accurate control of downstream cutoff.

Cutting Accuracy

+/- 0.3mm

Acceptable Electrode Width

10~300mm

Linear Speed Allowed for Cutting

1. Cut-to Length: 5~250mm/s

2. Color Mark Sense Cutting: 5~150mm/s

Acceptable Electrode Roll Size

Max. 250mm O.D

Compress Air Requirement

0.5~0.8MPa

Warranty

One year limited manufacturer warranty with lifetime support.

Dimensions of Machine

L1400*W800*H700mm

Compliance

CE Certified

Net Weight

240kg
