Item NO.:
TMAX-03ProPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:

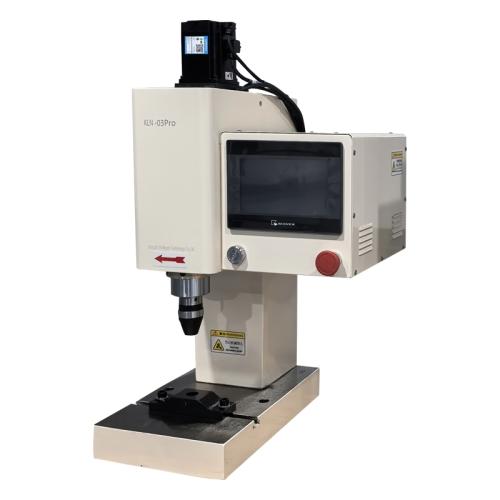

CE ROHS CertificateAutomatic Servo Hollow Solid Riveting Equipment
Feature
Inovance high-performance servo motor + Inovance or Mitsubishi PLC
TBI high-precision lead screw or optional THK high-precision ground lead screw from Japan
Weilun 7-inch high-definition touch screen
Schneider contactors, push-button switches
Mingwei power supply, Omron photoelectric switch
High-precision and high-flexibility riveting chucks
The self-developed intelligent control system has a repeatability accuracy of up to 0.01mm
Technical parameter
|
Riveting ability |
Solid φ1-3mm(soft steel) Hollow φ2-5mm(soft steel) |
|
The length of the rivets |
5-100mm |
|
Deep throat |
125mm |
|
Stroke |
Max 80mm |
|
Power |
0.4KW AC220V/50Hz 0.75KW AC220V/50Hz |
|
Working pressure |
1800N(180Kgf) |
|
Dimension |
380*460*750mm |
|
Working area |
230*250mm |
|
Net weight |
86kg |
