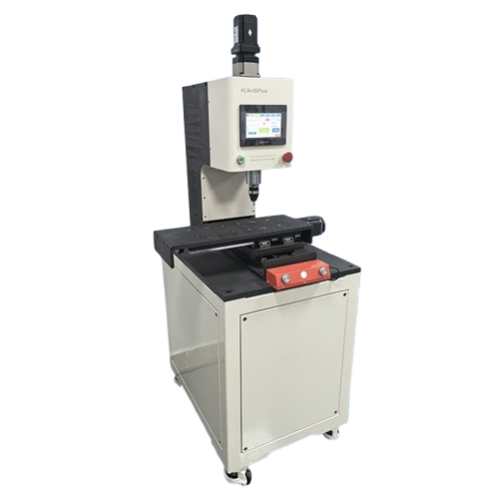

Automatic Servo Spin Solid Riveting Equipment

Item NO.:
TMAX-05Plus
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

Automatic Servo Spin Solid Riveting Equipment

Application

It is suitable for riveting products with multiple rivets, at different positions and heights, but with consistent appearance and similar size. Automatic riveting of solid or hollow rivets at multiple points for hardware components in industries such as automotive parts, precision electronics, sheet metal shafts for movements, 3C electronics, and hardware tools.

Features

The body features a humanized design and an attractive appearance.

High-performance servo motors and precise PLC control;

High-precision lead screw feed with high repeatability accuracy, up to 0.01mm.

Weilun 7-inch high-definition touch screen, with clear field of view and convenient operation;

High-precision and high-flexibility riveting chucks offer better riveting effects.

With up to 50 coordinate riveting points set on the XY axes, multiple products, multiple riveting points, and riveting at different heights can be achieved at once, doubling the efficiency

Technical parameter

Riveting ability	Solid Φ1-5mm (soft steel)
Itinerary	MAX 70mm
Rivet length	1-70mm
Deep throat	250mm
"Power"	0.4Kw AC220V/50Hz (Rotary motor)
Maximum working pressure	3*0.75Kw AC220V/50Hz (lead screw motor)
Workbench area	8KN(800kg)
Overall dimensions	230*380mm
Net weight	8006851780mm(LWH)
