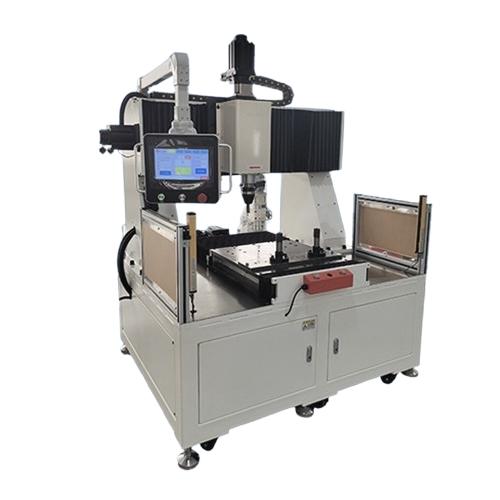

Automatic XYZ Axis Servo Solid Riveting Equipment

Item NO.:
TMAX-10Plus
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

Automatic XYZ Axis Servo Solid Riveting Equipment

Application

It is suitable for riveting products with multiple rivets, at different positions and heights, but with consistent appearance and similar size. Automatic riveting of solid or hollow rivets at multiple points for hardware components in industries such as automotive parts, precision electronics, sheet metal shafts for movements, and hardware tools.

Features

The body features a humanized design and an attractive appearance.

Huichuan high-performance servo motors and PLC control are precise.

Taiwan TBI high-precision lead screw feed, with a repeatability accuracy of up to 0.02mm.

The Weilun 10-inch high-definition touch screen offers a clear field of vision and is easy to operate.

High-precision and high-flexibility riveting chucks offer better riveting effects.

With up to 50 coordinate riveting points set on the XY axes, multiple products, multiple riveting points, and riveting at different heights can be achieved at once, doubling the efficiency.

Technical parameter

Riveting ability	Solid Φ3-10mm (soft steel)
Z-axis travel	MAX 80mm
Opening height	210mm
X-axis travel	800mm
Y-axis travel	400mm
Power	1.0Kw AC220V/50Hz (Rotary motor) 2*1.8Kw AC380V/50Hz (XY-axis motor) 2.4Kw AC380V/50Hz (Z-axis motor)
Maximum working pressure	30KN(3000kgf)
Area of the mobile workbench	500*500mm
Overall dimensions	138016801890mm(LWH)
Net weight
