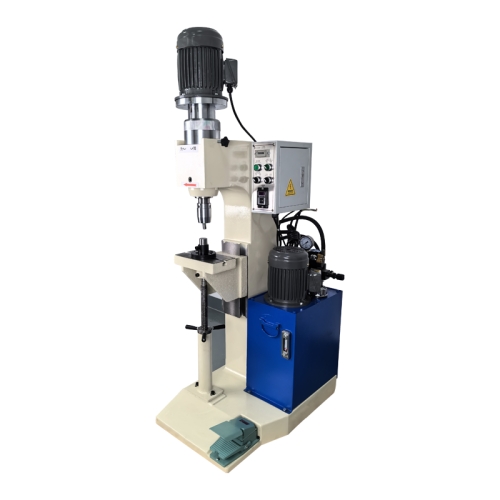

Powerful Oil Press Orbital Spin Riveting Machine


  • Item NO.:

    TMAX-HJ-155

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

Powerful Oil Press Orbital Spin Riveting Machine


Introduction

The steel plate body is sturdy in structure with a low center of gravity. It is equipped with a two-stage height adjustment device and a large cooling system, which makes the oil temperature less likely to rise and the pressure less likely to decline. The two-stage speed design of the chuck stroke ensures higher production capacity.

It has a large output force and strong riveting ability, with the maximum strength of rivets reaching up to 20mm.



Technical parameter

Riveting ability

Solid φ3-20 mm

The length of the rivets

400mm

Deep throat

200mm

Horsepower

5HP

Maximum pressure

1400-5500kg

Mechanical height

1800mm

Working area

160*260mm

Net weight

580kg
